EZ Interior Elevations / Revit

How to generate room interior elevations in Revit

Generate four room-direction interior elevations, a companion plan and organized sheets in Revit.

6 reference sections · 2 worked workflows · Guide revised

What it solves and why you would use it

Producing a room package requires repeating orientation, crop, naming and placement. This tool prepares four directions aligned with the room’s dominant outer wall; long directions split to fit the selected sheet at the chosen elevation scale. It documents existing geometry.

Worked example: document a restroom: requirements, steps and result checks.

Before you start

Download and install EZ VDC Tools for your supported version of Revit, sign in with your account and open a sample model.

Start with one placed, enclosed room in a project copy. Load compatible templates and a title block; enable optional tags or dimensions only after checking their families and references.

Open the tool: EZ VDC > the installed Interior Elevations command.

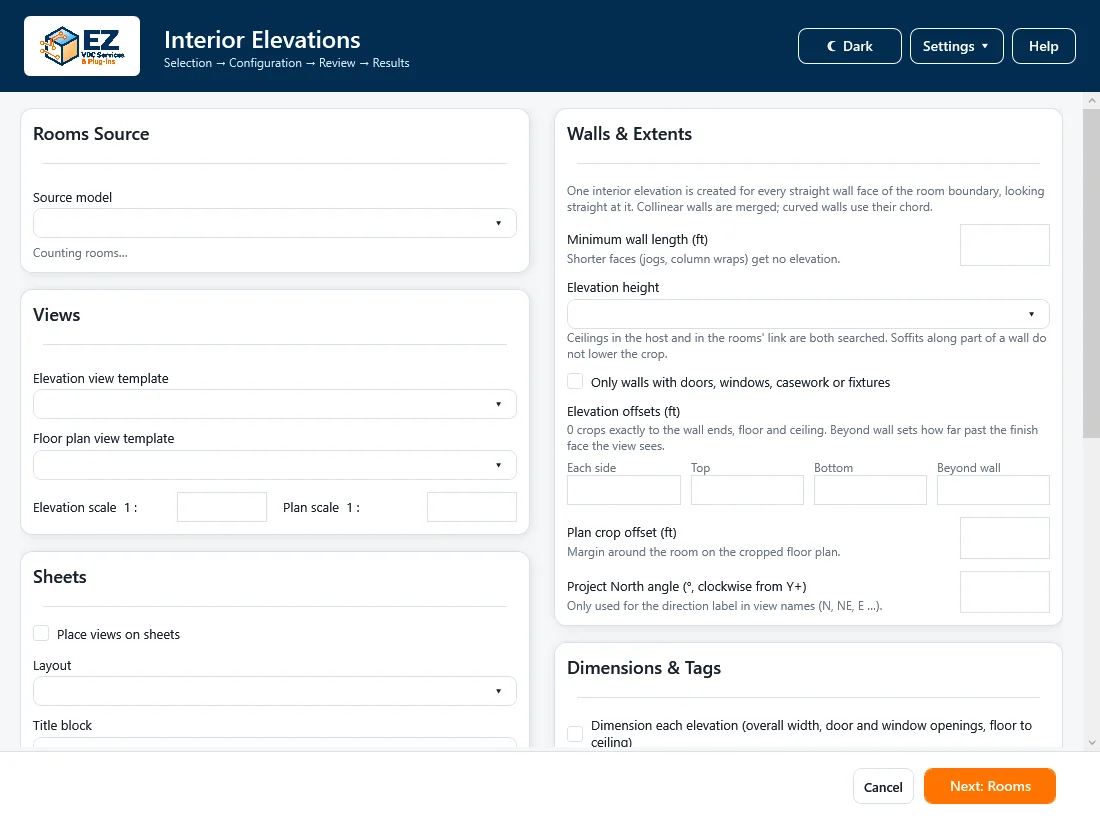

EZ Interior Elevations: Interface preview
Interface preview · Interface preview · Click to enlarge

Worked workflows

Example: a restroom drawing package

  1. Choose one placed, enclosed restroom in a project copy and confirm its architectural room source.
  2. Choose compatible view templates, elevation and starting plan scales, height and title block. Leave the content-only filter off for all four directions.
  3. Disable optional annotation for the first pass unless its references and loaded families have been checked. Review Advanced naming, margins and plan fitting.
  4. Next: Levels & rooms; check only the restroom. Inspect the selected and hidden counts, then Generate selected rooms.
  5. Review the completion report and Open plan. Inspect the four directions, any splits, actual scales and sheet fit before processing more rooms.

Expected result: A room plan and four directional elevations, with splits or continuation sheets only where needed and supported by the geometry.

Update a previously generated room

  1. Confirm the room source and select Update the existing drawing set.
  2. Leave Reflow generated sheets off when preserving manual layout. Review any newly enabled tag or dimension options.
  3. Select the intended room batch and check hidden selections before generating.
  4. Inspect created, updated, skipped and failed results and protected-content notes.
  5. Compare the updated plan, directional elevations, tags and sheets against the model; review superseded old per-wall views separately.

Expected result: Updated owned output with manual/protected content preserved or explicitly reported for review.

Controls and settings reference

Open a window or tab below to find its controls. Interface names match the plug-in; you can also search by function or unit.

31 of 31 reference entries

Room source and view setup

6 entries

Configure the source, templates and scales first. Advanced contains crop, naming and architectural annotations. Fields marked ft use feet; the title-block strip uses inches.

Rooms source
Choose the host model or a loaded Revit link containing placed, enclosed rooms. Linked rooms are transformed into host coordinates; drawings are created in the host. Start with one room and check the source placement.
Interior elevation template / Room plan template
Choose compatible loaded templates or no template. A template controlling scale takes precedence. Check phase, view range, visibility and far clip; an incompatible template can prevent a room from completing.
Elevation scale / Starting plan scale
Choose from the scale dropdowns: imperial drawing notation or metric ratios. A valid older custom scale appears as Saved custom. A controlling template wins. Starting plan scale can change with Fit overall plan on sheet; elevation scale remains fixed.
Elevation height
Floor to next level is the default for new settings and includes above-ceiling space; without a higher level, the room bounding-box top is used. Floor to ceiling and Floor to room upper limit remain available. Previously saved choices are retained.
Existing drawing set
Update the existing drawing set refreshes owned views and fills missing output; Skip rooms already generated leaves it unchanged. Create a new drawing set creates an independent package. Older per-wall output can be superseded by directional views; protected or unmatched content is preserved and reported.
Reflow generated sheets
Available when updating generated sheets. Leave unchecked to preserve manual layout. Enable only when you intend to rearrange eligible generated placements, then inspect the sheets and any protected placements reported.

Advanced: wall filters and crop extents

6 entries

Check one representative room before a batch. Parallel, segmented and recessed walls can share a direction view; the generator does not create one view per boundary segment.

Minimum wall length (ft)
The default for new settings is 0 to include short returns; previously saved values remain. Increasing the threshold can omit short wall runs. Degenerate boundaries at the geometric tolerance are excluded.
Only walls with openings or fixtures
Leave unchecked for all four directions. When enabled, directions without qualifying content can be omitted. Tracked EZ penetrations and supported architectural content count; loose furniture and untracked MEP crossings do not.
Side / Top / Bottom offsets (ft)
Side extends past wall ends, Top above the selected height and Bottom below the floor. Check the visible context and resulting sheet fit after changing an offset. These are different crop directions.
Beyond wall / Far clip (ft)
Controls depth beyond the wall finish face. Increasing it can reveal unwanted geometry behind the wall. Check the result against the intended drawing scope and any template-controlled settings.
Plan crop offset (ft)
Adds margin around the room plan. Leave enough context to read the room and its markers without making the plan unnecessarily large on the sheet. Check automatic plan fitting after changing it.
North angle (degrees)
Sets the direction labels relative to project north. It does not rotate model geometry or project north. Compare each elevation’s letter and direction with the generated room plan.

Architectural dimensions and tags

3 entries

Optional annotation uses actual references and loaded types. Missing or ambiguous references are reported; inspect each generated dimension against the model.

Dimensions: overall size, grids to fixtures, floor to opening bottoms
Enables architectural dimensions where native references are usable. Overall size, horizontal location and floor-to-bottom strings have separate requirements. Doors use authored edge references; other supported fixtures can use center references. Review skipped-reference notes.
Doors / Windows: checkbox and tag type
Enable a category and choose its loaded tag family/type. If no compatible tag is loaded, load the required family first. Check tag visibility and positions in each output elevation.
Casework / Plumbing fixtures: checkbox and tag type
Optional category-specific tags require a loaded compatible type. Check linked-element references and actual visibility in the output; selecting a tag does not guarantee every element can be annotated.

Existing EZ wall penetrations

4 entries

Create openings with EZ Wall Penetrations first. Interior Elevations documents and annotates tracked openings; it does not create or resize them.

Tag EZ wall penetrations / Tag type
Enable tags for tracked openings. The bundled EZ VDC ID + opening size native tag reads Mark and the published actual mapped size. Auto/category or compatible loaded custom types are alternatives. Linked source size data must be prepared in its owning model.
Add size beside custom tags
Adds separate size text for Auto/custom tags using mapped actual opening dimensions, refreshed on Update. Disabled for the bundled native tag because it already includes size. Missing mappings are reported rather than inferred from bounding boxes.
Horizontal: to opening centerline
Off disables this location dimension. Nearest wall edge or Nearest gridline chooses the horizontal datum. Actual associative wall/grid and opening references are required; unavailable or incompatible references are skipped and reported.
Floor to opening bottom / Floor datum
Enable the vertical dimension, then choose Room floor level or Actual floor top face. The reference must match the room floor and the opening’s authored Bottom. Missing or ambiguous physical floors/references are reported; no insertion-height substitutes are used.

Sheets and naming patterns

9 entries

Use unique names and inspect the measured usable sheet area. Long directions can split into more views without reducing their elevation scale.

Place views on sheets / Sheet layout
Enable sheet placement or leave off for views only. One sheet per room groups the plan and elevations; One sheet per view separates them. Continuation sheets are added when needed. Some oversized drawings still require a larger sheet or smaller drawing scale.
Title block / Info strip on right (in)
Choose a loaded title block when placing sheets. Advanced reserves an information strip on its right edge. Sheet borders, margins, annotations and view titles affect usable area; verify the finished layout.
Fit overall plan on sheet
If the whole plan does not fit, allows a larger plan scale denominator so the room fits. Elevation scale remains unchanged. Review the actual resulting plan scale in the completion report and on the sheet.
Save generated sheets as a print set
Creates a native saved set containing the generated sheets. This prepares the sheet selection; it does not print or export PDFs by itself. Review the set before using Revit’s print/export tools.
Floor-plan name pattern
Use room tokens such as {Number}, {Name}, {Level} or {P:Room parameter name} to distinguish plans. Check the pattern against existing view names and correct unknown tokens before continuing.
Elevation name pattern
Keep {Letter} so room-direction elevations remain distinguishable. {Dir} uses the configured north angle. Inspect split-view names and compare the final letters with the room plan.
Sheet number / Sheet name patterns
Use unique sheet numbers. Continuations append .2, .3; one-sheet-per-view elevation sheets append -A, -B. Per-view sheets use the corresponding view name. Check the generated sheet list and existing numbering conventions.
Reset to defaults
Resets the naming patterns. Review restored values before continuing, especially when the project uses customized room, view or sheet numbering. This is not a command to regenerate drawings.
Cancel / Next: Levels & rooms
Cancel exits before generation. Next validates the configuration, saves the choices and opens the level/room selection step. It does not generate drawings until you confirm the checked room batch.

Select levels and rooms, then review the report

3 entries

The hierarchy supports whole levels and individual rooms. Filtering changes visible rows while preserving hidden selections; review the full selected count before generation.

Filter field / Search / Clear ×
Choose a room parameter and enter plain text or a wildcard such as Restroom* or 1??. Clear restores the list. Filtering does not clear hidden checked rooms, so inspect the selected and hidden counts.
All shown / Level and room checkboxes
All shown applies to currently displayed rooms. Check a level for its rooms or individual rooms for a smaller batch. No rooms start checked unless valid rooms were selected in the model. Review preserved hidden selections before Generate.
Cancel / Generate selected rooms
Generate processes checked rooms and shows created, updated, skipped and failed results. Review the actual plan name, ID, scale and sheet location. Open plan opens the first successful result. A failed room rolls back; inspect successful drawings before a larger batch.

Check the result

  • Compare the plan and four elevation directions. Inspect continuity at splits, actual scales, viewport/title margins and optional annotation references. Read the completion report for skipped or failed rooms.

Troubleshooting and limits

  • Rooms must be placed and enclosed. Templates, linked references, actual sheet area and annotation references can limit output. Interior Elevations does not create openings; prepare tracked penetrations with EZ Wall Penetrations first.
  • Choose Update, Skip or Create new deliberately. Existing manual, protected or superseded content can remain and require review. A four-direction package can contain more than four views when long directions split; the optional content filter can omit directions.

Running it again

Choose Update the existing drawing set, Skip rooms already generated or Create a new drawing set deliberately. Leave Reflow generated sheets off to preserve manual layout, then review the completion report and protected or superseded content.

Try this workflow in your model

Download EZ VDC Tools, select EZ Interior Elevations in the installer and follow the example in a project copy first. Check requirements and activation before starting.

Download EZ Interior ElevationsSee plans
