EZ Sheet Creator

Create Revit sheets from an Excel register

Bring sheet numbers and names from Excel into Revit, validate the rows and create the selected sheets. EZ Sheet Creator also manages views, placement and parameter-based drawing packages.

Practical guides for using this plug-in
Part of the EZ VDC Toolkit

Revit and Navisworks plug-ins with one installer and one account. Subscribe to one, a bundle or all of them.

Worked example: create a three-sheet register

Use this small register in a copy of your project. It supplies sheet numbers and names; choose a loaded project title block in Revit.

Before you start

  • A supported Revit installation and a project with a loaded title block.
  • Unique sheet numbers. Choose the project’s default title block before creating rows.
  • An EZ-VDC account with eligible trial or active access. Close or save conflicting edits before the exercise.
Sample sheet register
Sheet NumberSheet Name
A-101Ground floor plan
A-201Interior elevations
A-301Details
Download the sample register (CSV)
  1. 1.

    Prepare the register

    Open Sheets → Create and choose a default title block. Export the Excel template when you need the project’s available choices and parameter columns, or use the small CSV example below.

  2. 2.

    Import or paste the rows

    Use Import Excel / CSV or Paste from Excel. Map Sheet Number and Sheet Name explicitly; check the header setting and the default title block before continuing.

  3. 3.

    Review and create

    Fix duplicate numbers, missing names and invalid choices. Select the valid rows and click Create, then review each row’s Done or Failed status.

  4. 4.

    Check and maintain the sheets

    Find the new sheets in Revit’s Project Browser and verify their numbers, names and title blocks. Use Manage to stage later metadata edits and Apply changes when the review is complete.

How to check the result

  • Confirm that each requested unique sheet exists with its intended name and title block.
  • Investigate failed rows before retrying; do not import the same completed register blindly.
  • This register exercise creates sheets. Creating or placing views is a separate workflow.

Scope and limits: Existing sheet numbers, missing title blocks and read-only parameters can block rows. View placement and parameter-based plan/section generation have their own inputs and checks. Inspect annotations and viewport fit on the resulting sheets.

Questions about this workflow

Can I create sheets from Excel or CSV?

Yes. You can import Excel/CSV with column mapping or paste rows from Excel. The exported Excel template includes project-specific choices; the sample CSV is a small starting register.

Will importing a sheet register also place views?

The register example creates sheets from their numbers and names. Use the view-creation or placement workflows when you also need views on those sheets.

What if a sheet number already exists?

Review and correct the row error before creating. Use the sheet manager for intentional edits to existing sheets instead of creating duplicate sheet numbers.

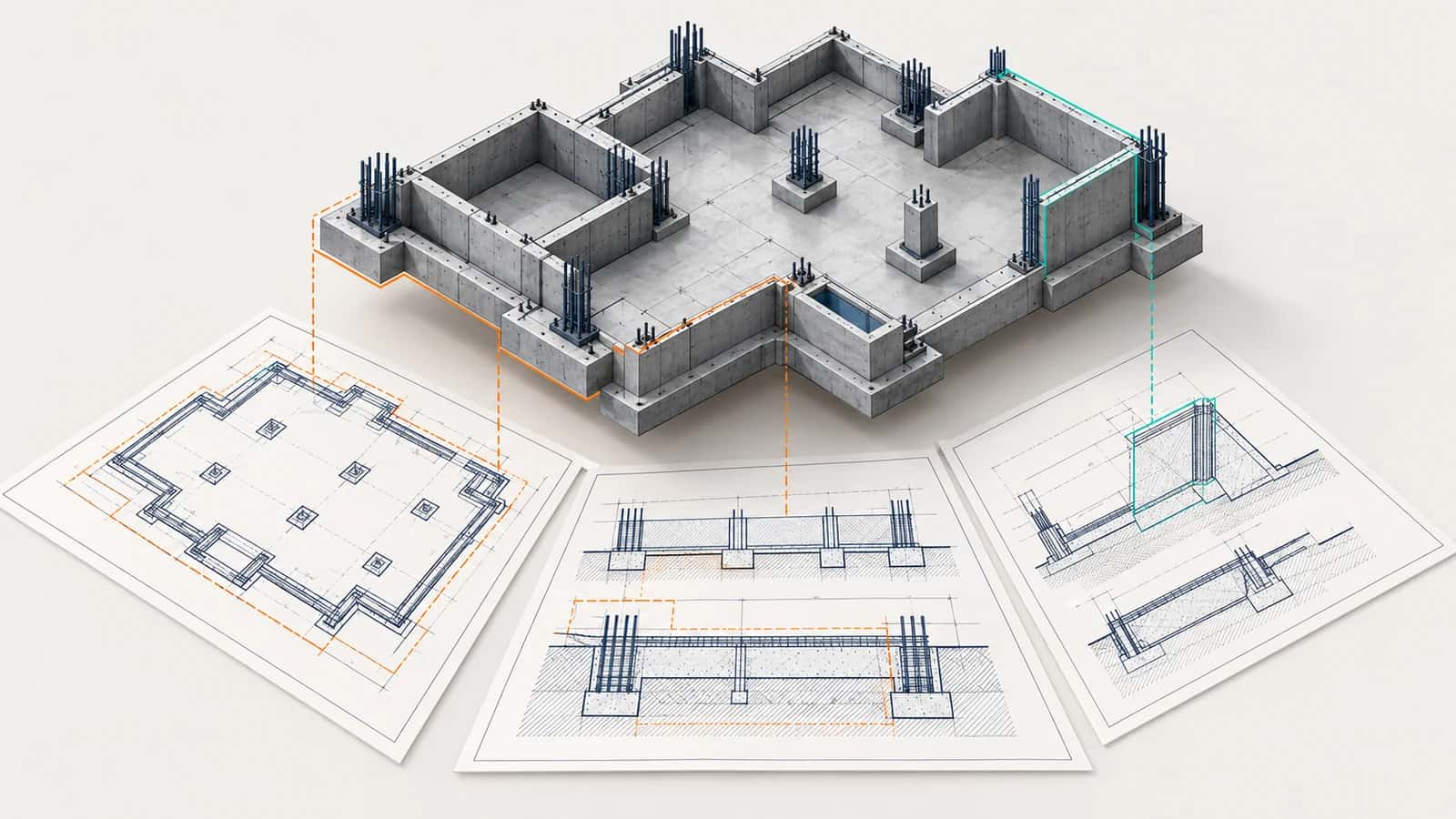

Drawing packages from parameters

Choose categories and a parameter, then the values to document
Presets for foundations, walls or generic elements
View templates, scales, title block, margins and naming in one screen
Preview the package and fix duplicate names or numbers before creating

Bulk management

Create sheets by pasting rows from Excel or importing a CSV
Edit view and sheet names, numbers and parameters in a grid
Move views to another sheet and keep their detail numbers
Renumber views by position on the sheet or by click order
Screenshots

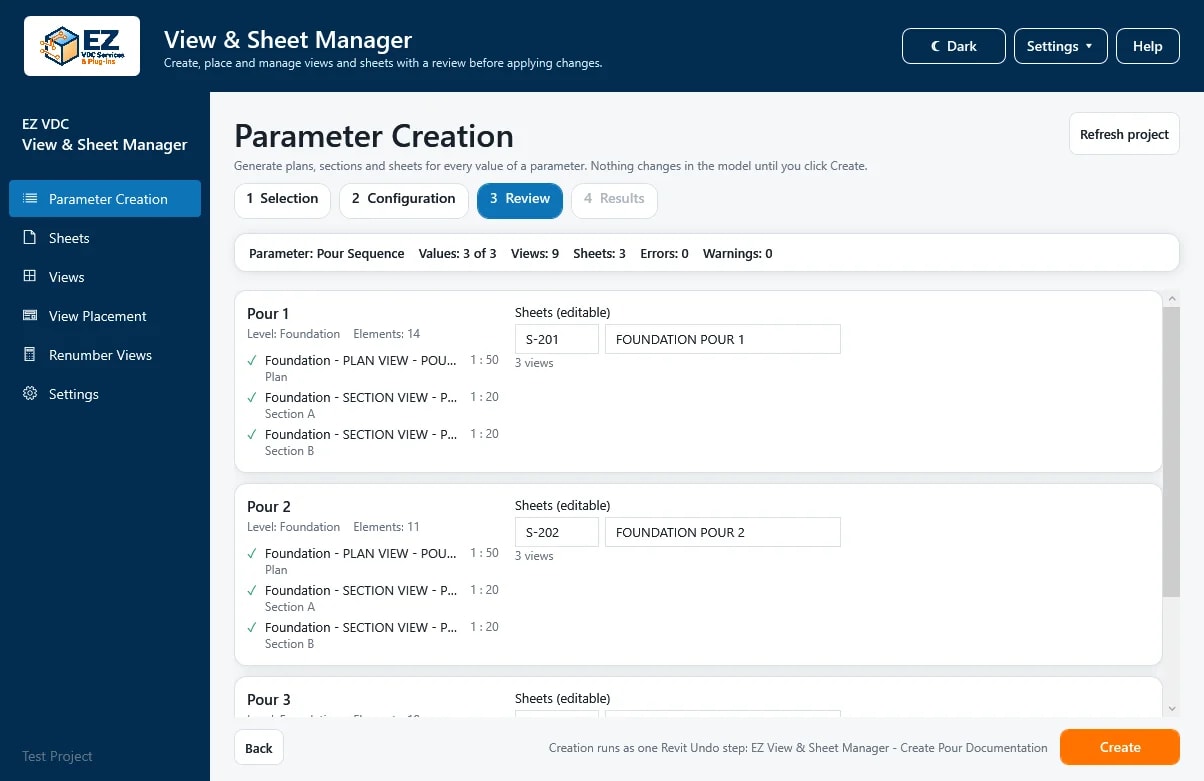

Interface preview · Interface preview

What it adds to this workflow

1
Prepare multiple views and sheets in a reviewed batch
2
Nothing is written to the model until you click Create or Apply
3
One Undo removes a whole creation run
Plug-in Details
PlatformRevit
StatusAvailable
Available viaEZ VDC
Download plug-in
Designed For
BIM Modelers
Drafters
Project Engineers
Detailers
Includes
Plans, sections and sheets from parameter values
Create sheets from Excel or CSV
Bulk-edit views and sheets in a grid
Move views between sheets
Renumber views by position or click order
