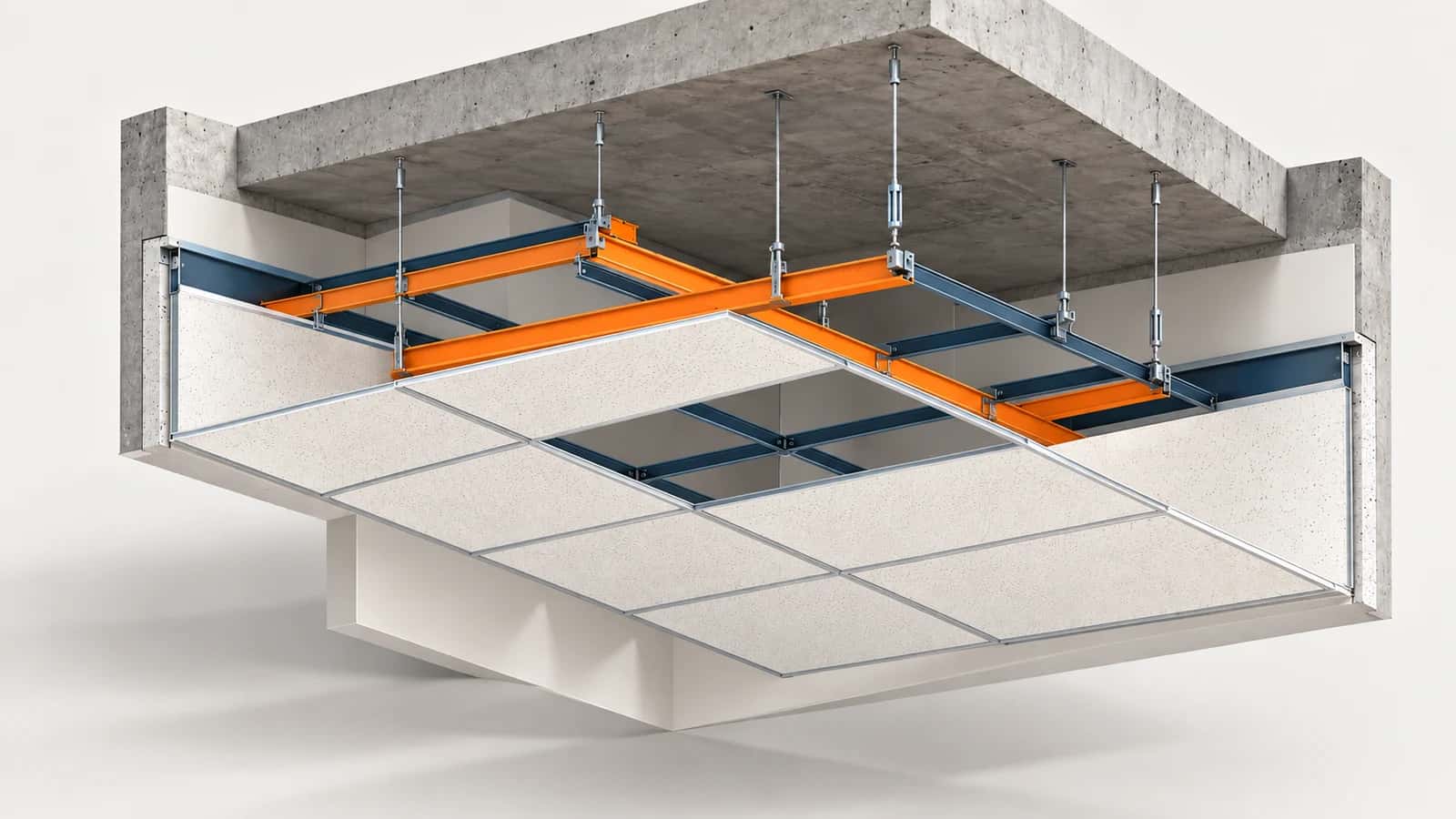

EZ Ceiling Grids for Autodesk Revit
EZ Ceiling Grids
Revit
Available

EZ Ceiling Grids

Turn Revit ceiling patterns into coordination geometry

Model the main runners, cross tees and perimeter members from a ceiling’s model surface pattern. EZ Ceiling Grids provides a per-ceiling preview so you can check counts, lengths and skipped cases before creating geometry.

Practical guides for using this plug-in
Part of the EZ VDC Toolkit

Revit and Navisworks plug-ins with one installer and one account. Subscribe to one, a bundle or all of them.

Worked example: model the grid of one ACT ceiling

Start with one ceiling whose model surface pattern is visible. Check the pattern and perimeter before processing a full level.

Before you start

  • Revit 2024–2027 and EZ Ceiling Grids with eligible access.
  • A ceiling with a measurable model surface pattern; a drafting pattern is not sufficient.
  • A reflected ceiling plan, floor plan or isometric 3D view suitable for reading the pattern.
  1. 1.

    Choose the ceiling and source

    Open a suitable view, make the pattern visible and choose the host or one loaded link instance. Pick one ceiling or use the intended preselection.

  2. 2.

    Set member dimensions and destination

    Enter main, cross and edge heights and width in project units. Choose the destination wall type and an existing workset, or use Add a workset if a new one is intended.

  3. 3.

    Preview the grid

    Run Preview and inspect main/cross/perimeter counts, total length and Status. Resolve an unreadable pattern or unsupported ceiling before creating a larger batch.

  4. 4.

    Create and inspect the geometry

    Create grids, then inspect alignment, heights, openings and edges in plan and 3D. After pattern changes, use Replace for the intended ceilings and inspect the replacement layout.

How to check the result

  • Compare grid lines with the visible model pattern.
  • Inspect perimeter gaps, openings and any sloped portions.
  • Confirm the output workset, member dimensions and reported lengths.

Scope and limits: The source must provide a usable model surface pattern and supported active view. Flat pattern runs use wall elements; sloped runs and edges use adaptive members. Inspect these element types in your coordination/export workflow.

Questions about this workflow

Can I use a drafting pattern?

No. The workflow reads a measurable model surface pattern from the ceiling. Check Preview Status before creating geometry.

Does it support linked ceilings?

Yes, from the selected loaded link instance. Generated elements and their destination workset belong to the current model.

Does Preview create the selected workset?

No. A requested new workset is created with the grid operation. Preview lets you inspect the planned result first.

Pick the ceilings

Ceilings from the current model or a linked model
Pick ceilings, or filter by type keyword, phase and level
Works from reflected ceiling plans, floor plans or 3D views

Model the grid

Set main runner, cross tee and edge dimensions
Preview member counts and total lengths per ceiling
Replace grids from an earlier run on the same ceilings
One Undo removes the whole run
Video
Screenshots

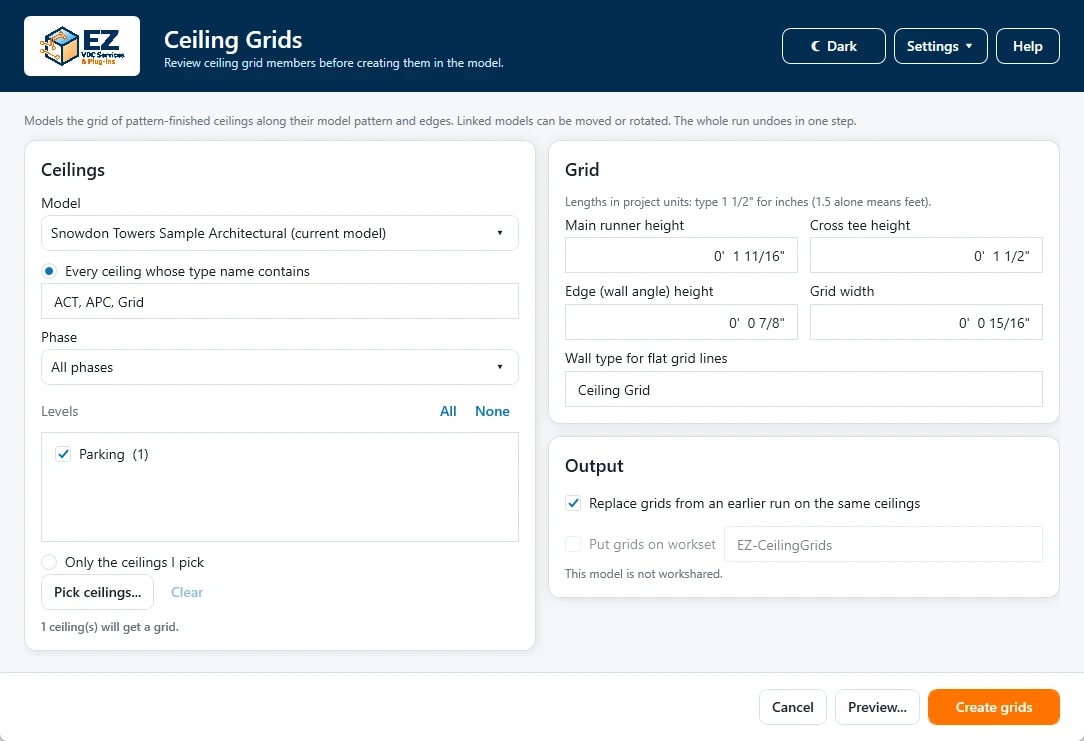

Ceiling grid settings

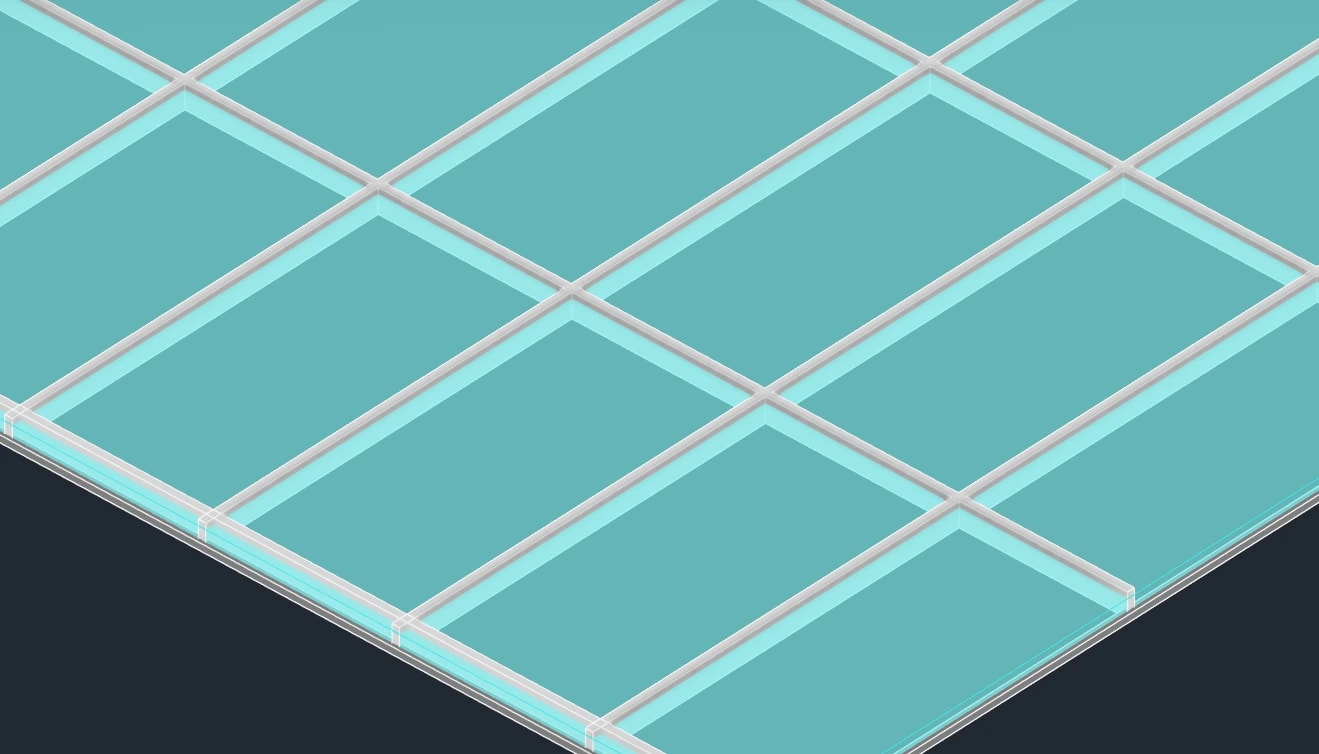

Modeled ceiling grid example

Open demo on YouTube ↗

What it adds to this workflow

1
Ceiling grid members ready for coordination and takeoff
2
The grid follows the pattern already assigned to the ceiling
3
Lengths per ceiling for quantities
Plug-in Details
PlatformRevit
StatusAvailable
Available viaEZ VDC
Download plug-in
Designed For
Ceiling Contractors
BIM Modelers
MEP Coordinators
Includes
Main runners and cross tees from the ceiling pattern
Perimeter edge members
Ceilings from the current model or a link
Preview counts and lengths per ceiling
Replace grids from an earlier run
